Flexible Rubber magnets can be either isotropic and anisotropic. The anisotropic flexible magnets are made by extrusion or injection. Properties such as high elasticity, flexibility and machinability make these magnets a favorite candidate for many permanent magnet applications in industry and in home appliances. The isotropic rubber magnets are wide use for daily necessary industry, making this magnet in toy, family education, printing and decoration, etc. Flexible magnets (include plastic magnets and rubber magnets) are compounds of plastics or rubbers with magnetic powders. They are light in special weight, soft, elastic, stable, easy to be processed, energy-saving etc. The application field ranges from electronic & electric industry, daily necessary industry, motor stators and rotators, family education, printing and decoration etc. The size, shape and magnetization pattern can be manufactured according to user's need.
| Code |
Br |
Hcb |
Hcj |
(BH)max |
Forming
way |
Size |
| T |
KA/m |
KA/m |
KJ/m3 |
Max
Length(m) |
Max
Width(mm) |
Height(mm) |
| N-1 |
0.13~0.18 |
80~120 |
100~160 |
4~6.4 |
Calendering |
100 |
400 |
0.4~1.1 |
| N-2 |
0.18~0.22 |
100~140 |
120~190 |
6.4~8.0 |
Calendering |
2 |
930 |
0.6~3 |
| N-3 |
0.21~0.239 |
140~165 |
150~210 |
8.0~10.4 |
Calendering |
100 |
400 |
0.4~1.5 |
| N-4 |
0.24~0.265 |
156~181 |
200~270 |
10.4~12.5 |
Calendering |
2 |
400 |
0.6~6 |
|

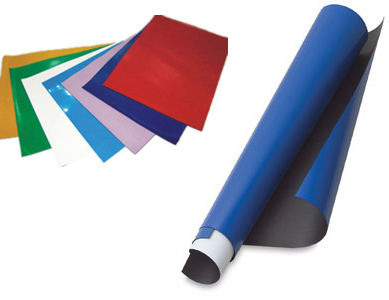

Flexible Magnetic
Sheeting
Flexible Magnetic Sheeting is produced with calendar process. It is normally used in office appliance, advertising, checking and testing meters etc. According to its magnetization method, it is divided into penetration magnetization and surface magnetization. The maximum width we can make is 1000mm, and the thickness is from 0.25-10mm. The pole pitch for thickness below 0.5mm is 2mm, for thickness 0.5 mm-1mm, the pole pitch is 2.5mm -3mm, if the thickness exceed 1mm, the pole pitch is 4mm - 5mm.
The magnetic sheet can be covered with chrome paper or white PVC film, then printed with the fine and exquisite patterns. It can be die-cut into various shapes of the fine and exquisite refrigerator magnet. It is mainly used in the advertising propagation, gift promotion, children' cartoon toys etc.
|
| Magnetic
properties of film covered magnets |
Code |
Br |
Hcb |
Hcj |
(BH)max |
Forming
way |
Size |
T |
KA/m |
KA/m |
KJ/m3 |
Max
Length(m) |
Max
Width(mm) |
Height(mm) |
ZY-1 |
0.13~0.18 |
80~120 |
100~160 |
4~6.4 |
Calendering |
100 |
400 |
0.4~1.1 |
ZY-2 |
0.18~0.22 |
100~140 |
120~190 |
6.4~8.0 |
Calendering |
2 |
930 |
0.6~1.5 |
ZY-3 |
0.21~0.239 |
140~165 |
150~210 |
8.0~10.4 |
Calendering |
100 |
400 |
0.4~1.5 |
ZY-4 |
0.24~0.265 |
156~181 |
200~270 |
10.4~12.5 |
Calendering |
2 |
400 |
0.6~1.5 |
Physical
properties of film-covering magnets
Code |
Hardness
(SHA) |
Temperature
(oC) |
Density
(g/cm3) |
ZY-1 |
85~98 |
-10~80 |
3.6~3.7 |
ZY-2 |
85~98 |
-10~80 |
3.6~3.7 |
ZY-3 |
85~98 |
-10~80 |
3.6~3.7 |
ZY-4 |
85~98 |
-10~80 |
3.6~3.7 |
|

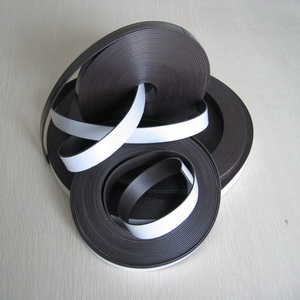

Flexible Magnetic Extrusions
Flexible Magnetic Strips are thermoplastic permanent magnetic Extrusions. It can provide superior holding power and widely used in stationery, household appliance, water-tight appliance. According to its magnetic property, it is divided into anisotropic and isotropic; according to its magnetization way, it is divided into surface magnetization and penetration magnetization (longitudinal, transverse and bilateral).
Extruded magnetic strips are widely applicable for the electric refrigerator door sealing, drinking water machine door sealing, magnetic drawing board, toy, teaching, bathroom seal strip, relay, switch and so forth. It can provide superior holding power and widely used in stationery, household appliance, water-tight appliance. According to its magnetic property, it is divided into anisotropic and isotropic; according to its magnetization way, it is divided into surface magnetization and penetration magnetization (longitudinal, transverse and bilateral). Our existing size is 12x4mm, 9x3mm, 9x2.5mm, 9x2mm, 8x4mm, 12.7x1.5mm, 25.4x1.5mm, the length is as per user's request
|
|
